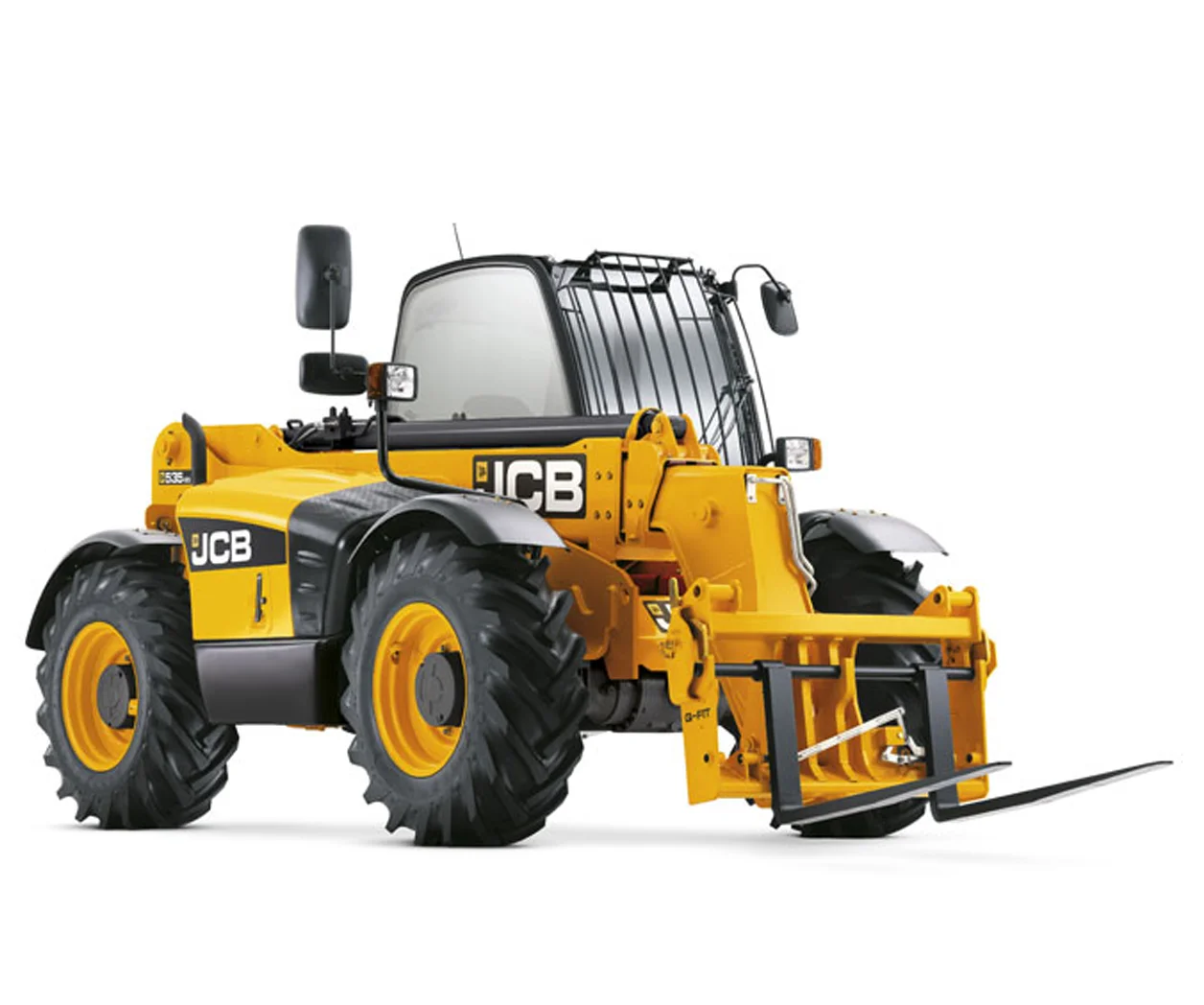

3t telehandler

Model: JCB 535-95

Product Code: JCB535

  • Description
    • Max. Lift Capacity: 3,000kg

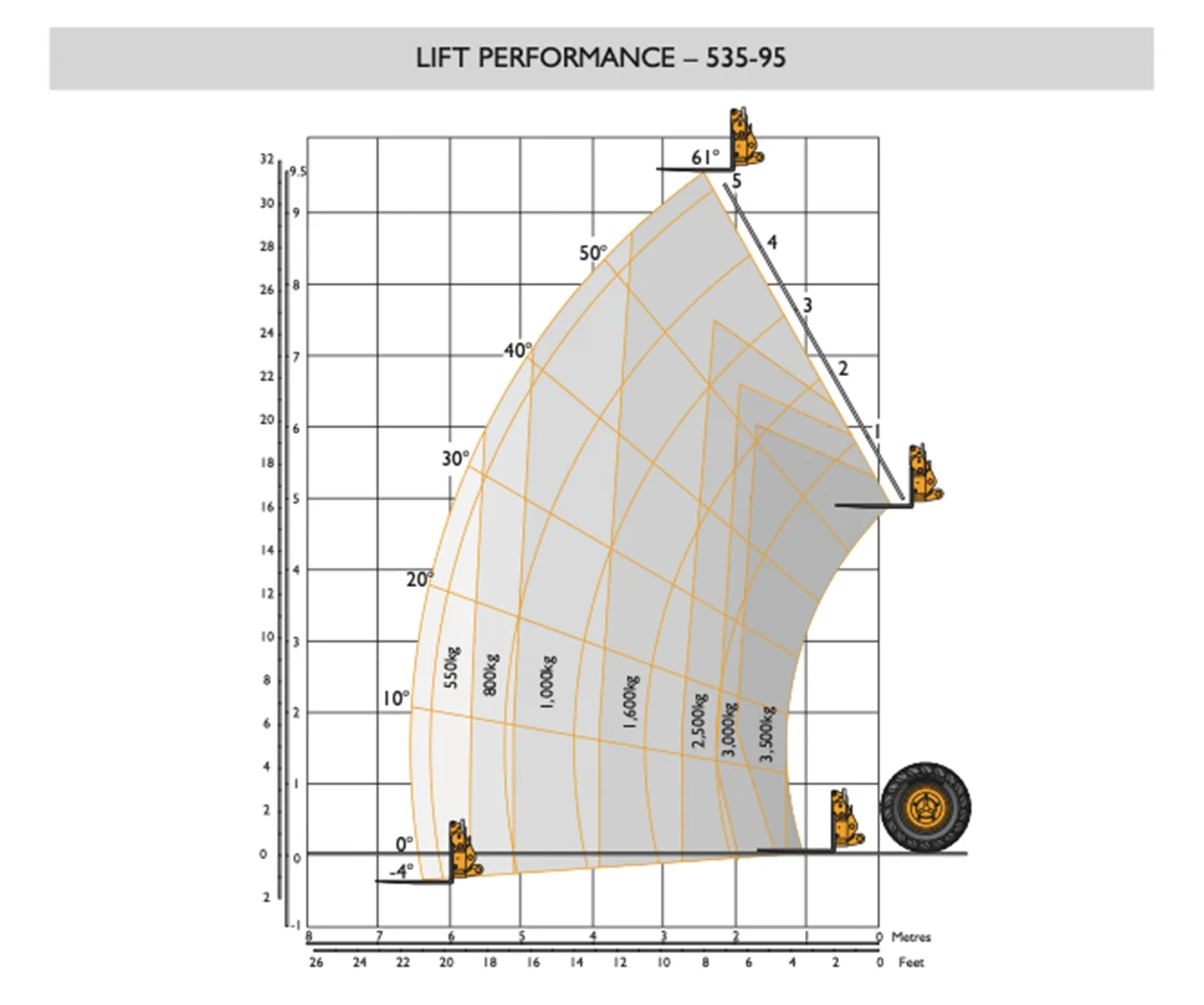

    • Max. Lift Height: 9.5m
    • Max. Reach: 6.5m
    • Engine Power: 55kW
    • Operating Weight: 8,215kg
    Read more...

    The JCB 535-95 is a versatile 3t telehandler available for hire across Sydney. Offering increased lifting capacity and reach compared with smaller machines, it is well suited to a wide range of construction and materials handling tasks.

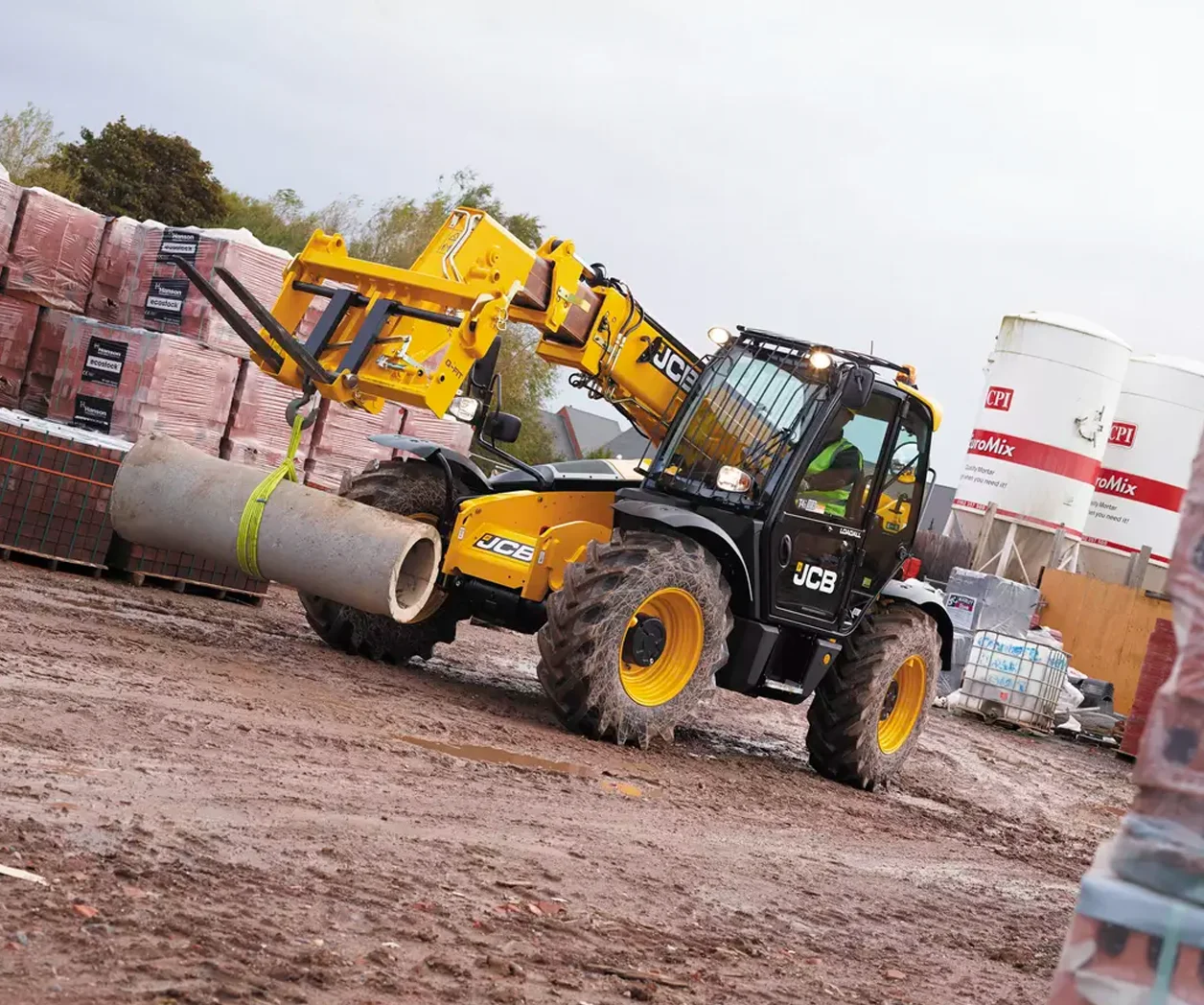

    With a maximum lift height of 9.5m, the JCB 535-95 provides the reach required for placing materials onto upper levels, scaffolding and roofing structures. It is commonly used on construction sites where additional height and lifting capability are needed.

    As part of our telehandler range, this machine sits between compact and high reach models, offering a balance of lifting capacity and versatility on site.

    Available for short and long term hire from our Wetherill Park depot, with delivery across Sydney.

  • Downloads
  • Health and Safety
    Please refer to the operator manual or instruction guide for details
